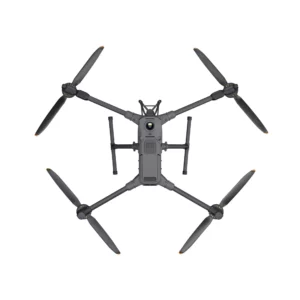

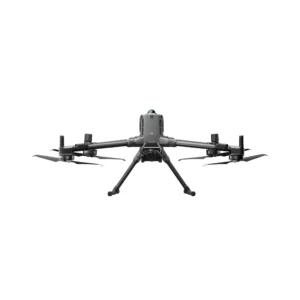

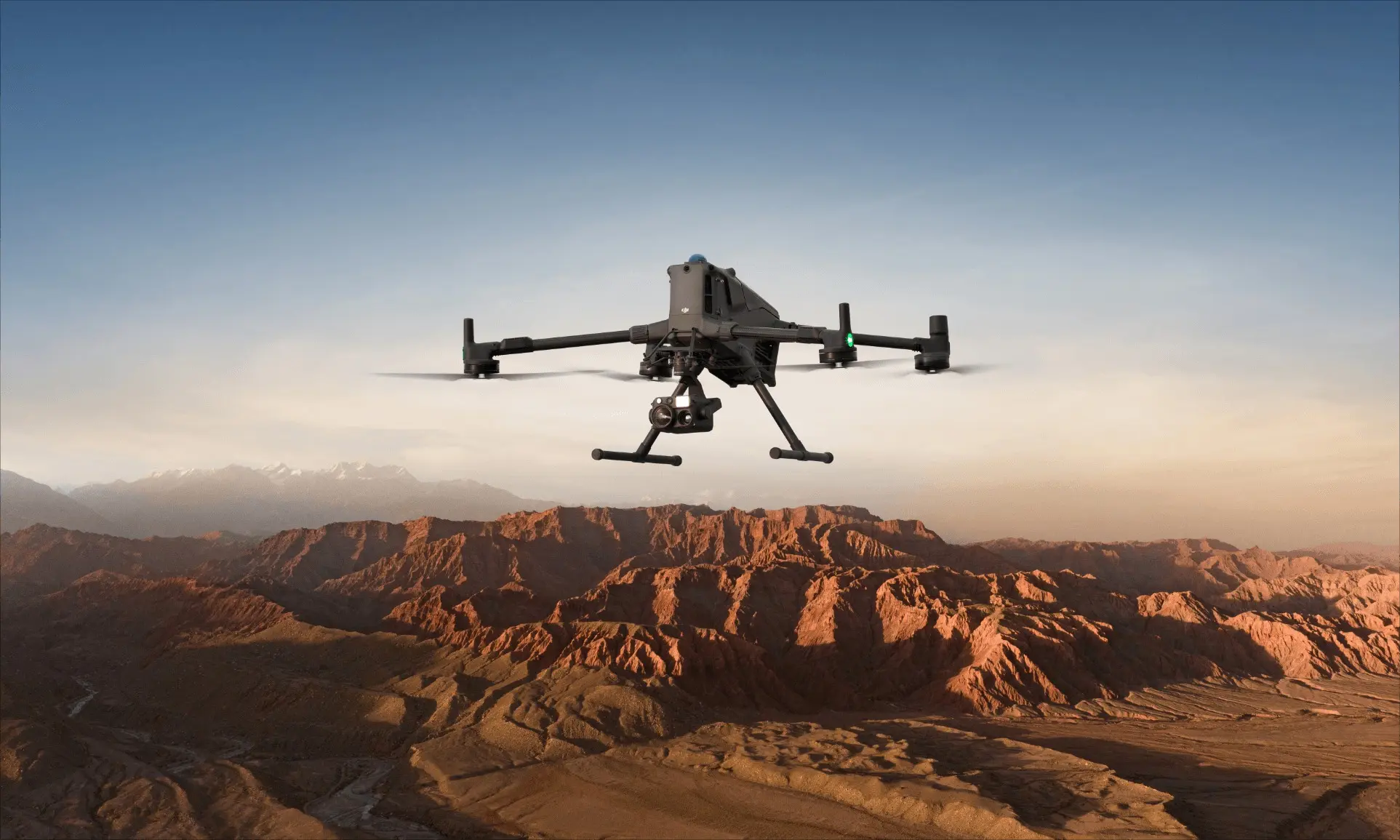

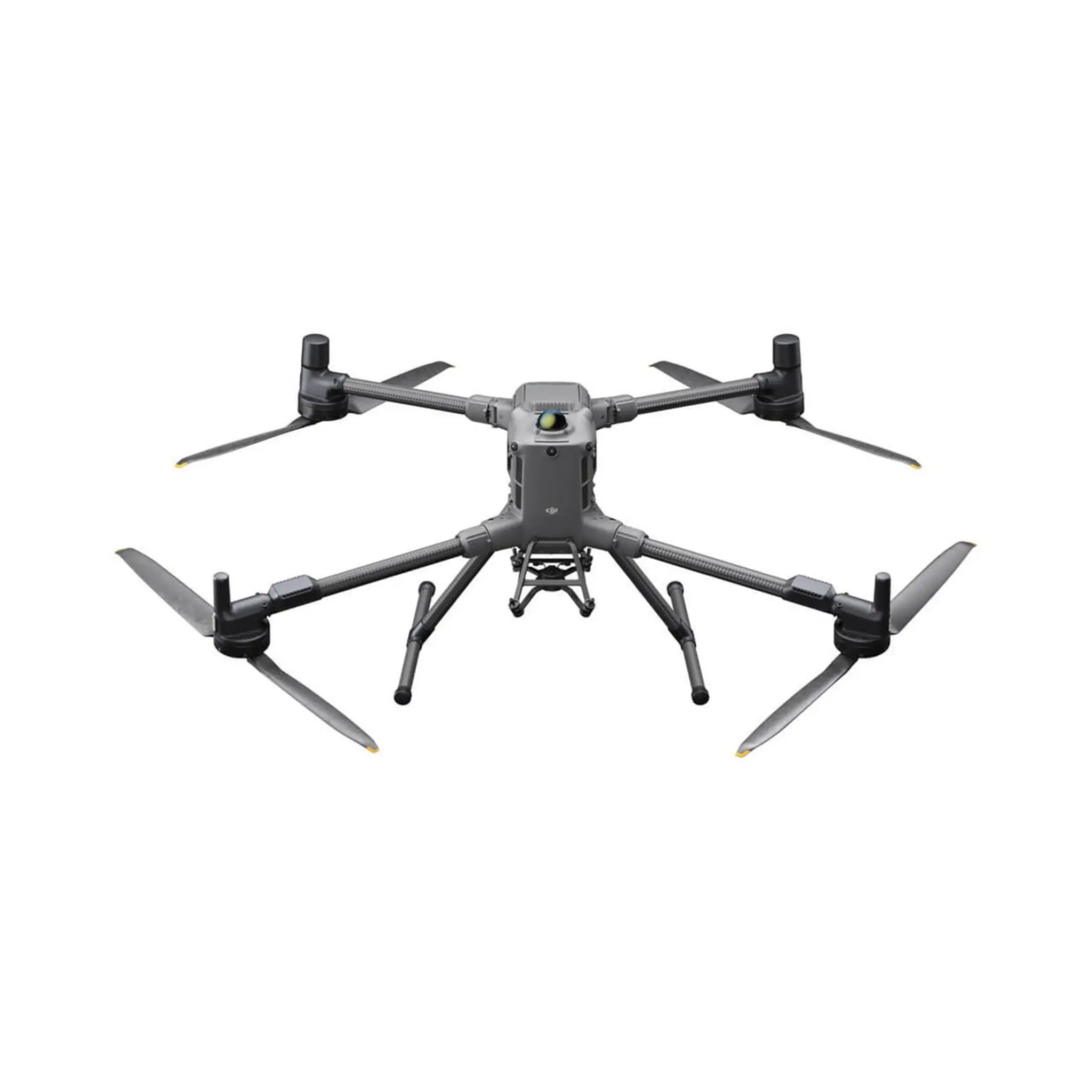

De DJI Matrice 400 is ontwikkeld voor professionals en biedt ongeëvenaarde uithoudingsvermogen, zware-ladingcapaciteit en industriële betrouwbaarheid. Van inspecties van hoogspanningslijnen tot zoek- en reddingsacties, mapping en offshore-operaties, deze drone presteert wanneer het er echt toe doet.
De Matrice 400 is meer dan een drone; het is een complete luchtoplossing. Vertrouwd door surveyors, hulpdiensten, industriële engineers en mapping professionals, levert hij ongeëvenaarde veelzijdigheid, betrouwbaarheid en intelligentie. Of het nu dag of nacht is, regen of zon, landinwaarts of offshore, de M400 stelt je in staat meer terrein te dekken in minder vluchten.
| Product | DJI Matrice 400 |
| EAN | 6937224120570 |
| Takeoff Weight (without batteries) | 5020 ± 20 g |
| Takeoff Weight (with batteries) | 9740 ± 40 g |
| Max Takeoff Weight | 15.8 kg |
| Dimensions (Unfolded) | 980×760×480 mm |
| Dimensions (Folded) | 490×490×480 mm |
| Carrying Case Dimensions | 779×363×528 mm |
| Max Payload | 6 kg |
| Propeller Size | 25 in |
| Diagonal Wheelbase | 1070 mm |
| Max Ascent Speed | 10 m/s |
| Max Descent Speed | 8 m/s |
| Max Horizontal Speed | 25 m/s |
| Max Takeoff Altitude | 7000 m |
| Max Flight Time (no wind) | 59 min |
| Max Hover Time (no wind) | 53 min |
| Max Flight Distance (no wind) | 49 km |
| Max Wind Resistance | 12 m/s |
| Max Yaw Angular Velocity | 100°/s |
| Max Pitch Angle | 35° |
| Operating Temperature | -20 °C to 50 °C |
| GNSS | GPS + Galileo + BeiDou + GLONASS |
| Hovering Accuracy (Vertical, Vision) | ±0.1 m |
| Hovering Accuracy (Vertical, Satellite) | ±0.5 m |
| Hovering Accuracy (Vertical, RTK) | ±0.1 m |
| Hovering Accuracy (Horizontal, Vision) | ±0.3 m |
| Hovering Accuracy (Horizontal, Satellite) | ±0.5 m |
| Hovering Accuracy (Horizontal, RTK) | ±0.1 m |
| RTK GNSS Accuracy | 1 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical |
| RTK Heading | Accuracy better than 2° |
| Airborne ADS-B In | Standard receiver, dual antennas, 20 km range |
| Ports | USB-C Debug ×1, E-Port V2 ×4, Cellular Dongle 2 ×2 |
| Propeller Model | 2510F |
| Motor Model | 7510 |
| Beacon | Built-in |
| Ingress Protection | IP55 |
| Single Gimbal Connector Max Payload | 1400 g |
| Dual Gimbal Connector Max Payload | 950 g |
| Third Gimbal Connector Max Payload | 3 kg (quick-release), 6 kg (screw lock) |
| Zenmuse L3 Max Payload | 2100 g |
| Sensing Type | Omnidirectional binocular vision, horizontal rotating LiDAR, upper LiDAR, downward 3D infrared range sensor, six-direction mmWave radar |
| Forward Measurement Range | 0.4–21 m |
| Forward Detection Range | 0.4–200 m |
| Forward FOV | 90° horizontal, 90° vertical |
| Backward Measurement Range | 0.4–21 m |
| Backward Detection Range | 0.4–200 m |
| Backward FOV | 90° horizontal, 90° vertical |
| Lateral Measurement Range | 0.6–21 m |
| Lateral Detection Range | 0.5–200 m |
| Lateral FOV | 90° horizontal, 90° vertical |
| Downward Measurement Range | 0.5–19 m |
| Downward FOV | 160° front/rear, 105° left/right |
| Rotating LiDAR Measurement Range | 0.5–100 m @ 100,000 lux, 10% reflectivity target |
| Rotating LiDAR FOV | 360° horizontal, 58° vertical |
| Rotating LiDAR Point Frequency | 520,000 points/sec |
| Rotating LiDAR Laser Wavelength | 905 nm |
| Upper LiDAR (3D ToF) Measurement Range | 0.5–25 m at night, reflectivity >10% |
| Upper LiDAR FOV | 60° up/down, 60° left/right |
| Downward 3D Infrared Sensor Range | 0.3–8 m, reflectivity >10% |
| Downward Sensor FOV | 60° front/back, 60° left/right |
| mmWave Radar Power Line Range | 36 m (12 mm wire), 50 m (21.6 mm wire) |
| mmWave Radar FOV | ±45° horizontal and vertical |
| FPV Camera Resolution | 1080p |
| FPV Camera FOV | 150° DFOV, 139.6° HFOV, 95.3° VFOV |
| FPV Camera Frame Rate | 30 fps |
| FPV Night Vision | Starlight Grade |
| Video Transmission System | DJI O4 Enterprise Enhanced |
| Max Transmission Distance (Unobstructed) | 40 km (FCC), 20 km (CE/SRRC/MIC) |
| Max Transmission Distance (With Interference) | 1.5–40 km |
| Max Download Speed | 80 Mbps downlink |
| Antennas | WLAN ×8, sub2G ×2, 4G ×4 |
| Battery Model | TB100 |
| Battery Capacity | 20254 mAh, 977 Wh |
| Battery Voltage | 48.23 V (max 54.6 V) |
| Battery Weight | 4720 ± 20 g |
| Battery Charging Temp | 5–45 °C |
| Battery Discharging Temp | -20–75 °C |
| Battery Cycle Count | 400 |
| Battery Discharge Rate | 4C |
| Max Charging Power | 2C |
| Low-Temperature Charging | Supported |
| Intelligent Battery Station (BS100) Weight | 11.8 kg |
| BS100 Dimensions | 605×410×250 mm |
| BS100 Supported Batteries | TB100, TB100C, WB37 |
| BS100 Input | 100–240 V AC, 50–60 Hz, 10 A |
| BS100 Output | TB100: 1185–2184 W depending on input, WB37: 52 W, USB-C: 5–20 V/3–3.25 A |
| BS100 Charging Channels | 3×TB100, 2×WB37 |
| TB100 Charging Time (220 V) | 45 min (Fast), 110 min (Silent) |
| TB100 Charging Time (110 V) | 70 min (Fast), 110 min (Silent) |
| Remote Controller | DJI RC Plus 2 Enterprise Enhanced |
| Controller Screen | 7.02 in, 1920×1200, 60 fps, 1400 nits |
| Controller Touchscreen | 10-point multi-touch |
| Controller Built-in Battery | 2S2P 18650 Li-ion, 6500 mAh, 46.8 Wh |
| Controller External Battery | Optional WB37, 4920 mAh, 37 Wh |
| Controller Charging | PD fast charge, max 20 V/3.25 A |
| Controller Storage | RAM 8 GB + ROM 128 GB UFS, expandable via microSD |
| Controller Runtime | Internal: 3.8 h, External: 3.2 h |
| Controller Wi-Fi | 2×2 MIMO, dual-band, up to 1774.5 Mbps |
| Controller Bluetooth | 5.2, <10 dBm |
| Controller Operating Temp | -20–50 °C |
| Supported Gimbals | Zenmuse L3, H30, H30T, L2, P1 |
| Supported Accessories | Zenmuse S1, V1, Manifold 3, DJI RC Plus 2 sub2G SDR Module, DJI Cellular Dongle 2 |
| Supported RTK | D-RTK 3 Multifunctional Station, D-RTK 2 Mobile Station |
| Ecosystem Accessories | DJI X-Port, E-Port V2 Dev Kit, SKYPORT V3 Adapter & Cable Kits |
| 1x Matrice 400 |
| 1x RC Plus 2 Enterprise Enhanced |
| 1x RC Plus 2 sub2G SDR-module |
| 1x RC Plus 2 riem- en beugelset |
| 1x Matrice 400 2510F propeller |
| 1x Matrice 400 gimbal-demper |
| 1x Matrice 400 draagtas |
| 1x Roterende LiDAR-kalibratieafdekking |
| 1x Voorste propellerhouder |
| 1x Achterste propellerhouder |
| 1x USB-C naar USB-C datakabel |
| 1x WB37-batterij |
| 2x E-Port V2 rubberen poortafdekking |
| 4x rubberen plugschroeven (2×2) |
| 1x Schroeven en gereedschap |
| 1x Reinigingsgereedschap |
| Gimbalcamera's: Zenmuse L3, Zenmuse H30, Zenmuse H30T, Zenmuse L2 en Zenmuse P1 | |
| Accessoires: Zenmuse S1 (drone-spotlight), Zenmuse V1 (drone-luidspreker), Manifold 3, DJI RC Plus 2 sub2G SDR-module*, DJI Cellular Dongle 2 | |
| RTK-station: D-RTK 3 multifunctioneel station, D-RTK 2 mobiel station | |
| Ecosysteemaccessoires: DJI X-Port | |
| DJI E-Port V2-ontwikkelingskit | |
| DJI E-Port V2 coaxkabelkit | |
| DJI SKYPORT V3-adapterset | |
| DJI SKYPORT V3 coaxkabelkit |
